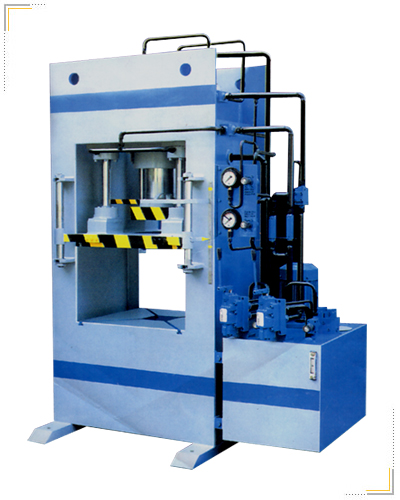

Double
Action Deep Drawing Hydraulic Presses |
|
Art
No. : |
BN-HP-DDD-1301 |
|
|
Specifications |
|
|
Total
Capacity (in tons) |
115 |
150 |
225 |
300 |
375 |
450 |
600 |
750 |
|
1.
|
Main
Cylinder (in tons) |
75 |
100 |
150 |
200 |
250 |
300 |
400 |
500 |
|
2.
|
Blank
Holder (in tons) |
40 |
50 |
75 |
100 |
125 |
150 |
200 |
250 |
|
3.
|
Bed
Size (in mm) |
600
x 600 |
750
x 750 |
450
x 900 |
1000
x 1000 |
1250
x 1250 |
1250
x 1250 |
1250
x 1850 |
1300
x 2200 |
|
4.
|
Main
Cylinder Stroke (in mm) |
400 |
500 |
600 |
600 |
600 |
700 |
800 |
800 |
|
5. |
Blank
Holder Stroke (in mm) |
250 |
300 |
350 |
350 |
350 |
400 |
500 |
500 |
|
6. |
Max.
Distance between Bed and Punch Holder (in
mm) |
625 |
800 |
950 |
950 |
950 |
1100 |
1250 |
1250 |
|
7. |
Max.
distance between Bed and Blank Holder (in
mm) |
200 |
250 |
300 |
300 |
300 |
350 |
400 |
400 |
|
8.
|
Maximum
Draw (in mm) |
200 |
250 |
300 |
300 |
300 |
350 |
400 |
400 |
|
9. |
Die
Coushion (in tons) (in Die Coushion type Presses
only) |
40 |
50 |
75 |
100 |
125 |
150 |
200 |
250 |
|
10.
|
Motor
HP |
7.5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
|
|
|
|
|
1.
BN-HP-DDD-1301
is fully Automatic control type. |
|
|
2.
The above specification are Bansal Enterprises
standard machine. Other type or specification
can be provided as customer require. |
|
|
3. This
catalogue is for order reference only designs
and specification are subject to change without
notice.
|
|
| |
|
|
| |
|
|
|
|
 |
 |
|
|
