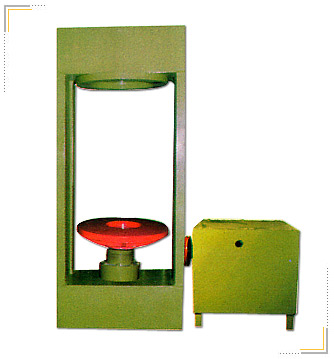

Cycle Tyre Moulding Press

Art No. :

BNTP-1303

Tire Size

 Bicycle Tire

Cylinder Dia.

150 mm

No. of  Daylight

5

Max. mold outer dia.

750 mm

Platen outer dia.

760Ømm

Thickness of mold

33-45mm

Steam platen opening space

150mm

Max. clamping force

37 Tons

Working clamping force

23 Tons

Hydraulic working Pressure

130kg /cm²

Steam platen pressure

8kg/cm²

Air Bag Inner pressure

14-16kg/cm²

Capacity per 8 hours

300 pcs tire

Machine weight

N.W. 3500 - 4000 Kg.

G.W. 4000 - 4500kg

Packing

2850 × 880 × 1350mm

1. BNTP-A-1303 is fully Automatic control type. BNTP-S-1303 is Semi-Auto control type.

2. Hydraulic power unit for 8 sets of tire curing press use

          Model    :                BNTP-1303

          Motor     :               10 PH × 6P induction motor

          High pressure   :     Max. 210 kg/cm2

          Low pressure    :     Max. 70 kg/cm2

          Packing           :      1300×1100×1300 mm

          N.W. 450 kg    G.W. 650kg

3. The above specification are Bansal Enterprises standard machine. Other type or specification can be provided as customer require.

4. This catalogue is for order reference only designs and specification are subject to change without notice.
