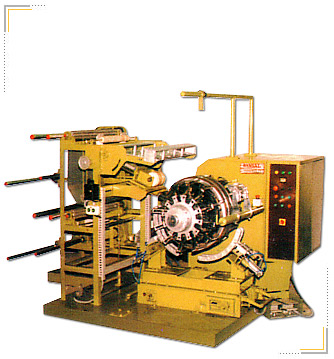

T.B.M
Machine For All Sizes Of Cycle Tyre With
P.L.C., |
|
Fully
Auto Control |
|
Art
No. : |
BN-CTMP-1304 |
|
|
Specifications |
|
|
Model |
BN-TBM-C1-1304 |
BN-TBM-C2-1304 |
|
Specification |
|
|
|
|
Size of tire |
Bicycle
Tire |
|
Rim Size applicable |
12 1/2" ~
20" |
22" ~
28" |
|
Nylon Cord |
1
Ply Overlape |
|
Cor width (max.) |
400
mm |
|
Cord Fabric roll diameter (max.) |
500
mm |
|
Liner Cloth width (max.) |
500
mm |
|
Liner Cloth Roll Diameter (max.) |
300
mm |
|
Thread Roll Diameter (max.) |
500
mm |
|
Thread width (max.) |
160
mm |
|
Revolution of Drum |
50 r.p.m |
45 r.p.m |
|
Under Stitcher |
Rubber
Profile Roll |
|
Main Drive Motor |
2
HP Induction Motor |
|
Under Stitcher Cylinder |
63 x 100 st. |
|
Ply Servicer Motor |
1/2HP
x 4P x 1/20/each ply |
|
Thread Servicer Motor |
1/2HP
x 4P x 1/6 |
|
Compressed Air |
7-8 kg/cm2 |
|
Power Supply |
Ac
x V
x Hz x 3 |
|
Packing Dimension |
2310
x 2820 x 1940 mm |
|
Gross Weight |
3500
- 4000 Kg |
|
Building Speed |
15
~
20 Sec./1PC |
30
~
35 Sec./1PC |
| |
|
1.
BN-TBM-C1-1304
is fully Automatic control type. BN-TBM-C2-1304
is Semi-Auto control type. |
|
2. The
above specification are Bansal Enterprises
standard machine. Other type or specification
can be provided as customer require. |
|
3. This
catalogue is for order reference only designs
and specification are subject to change without
notice.
|
|
| |
|
|
| |
|
|
|
|
 |
 |
|
|
